电动对辊机

发布时间:2021-10-19 17:58人气:
  • 实验型自动涂布机_1

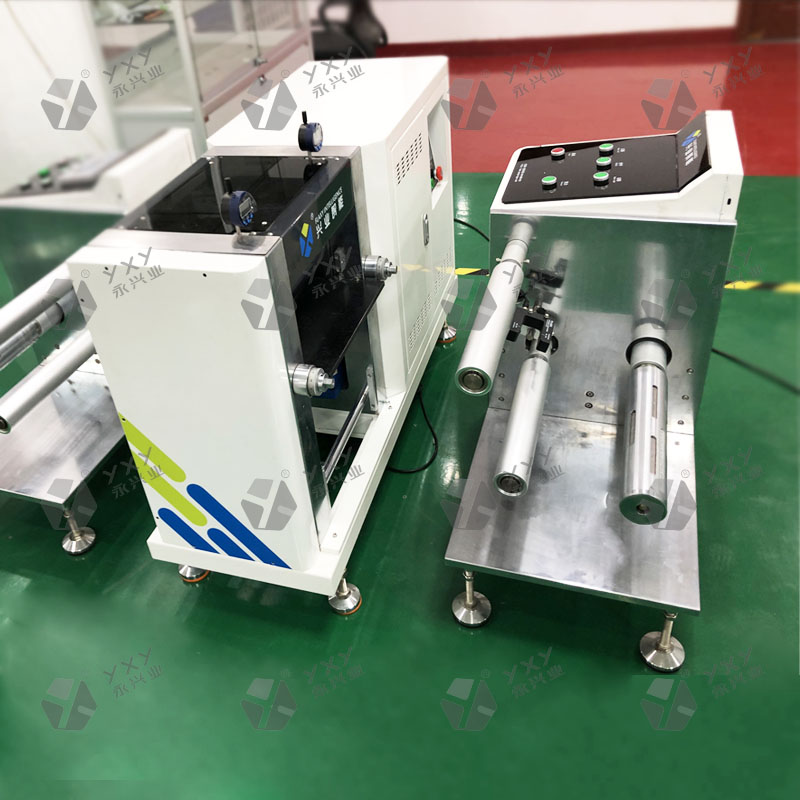

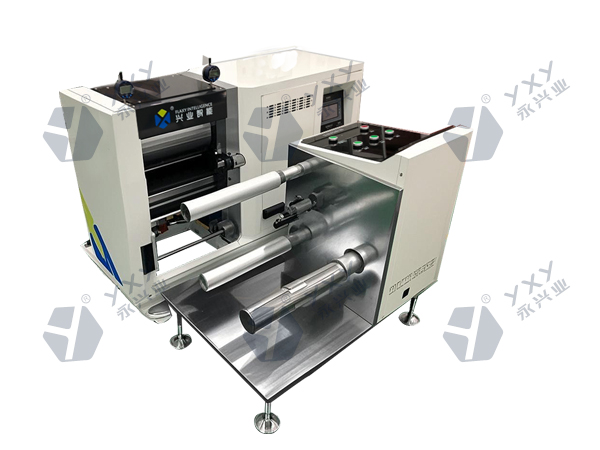

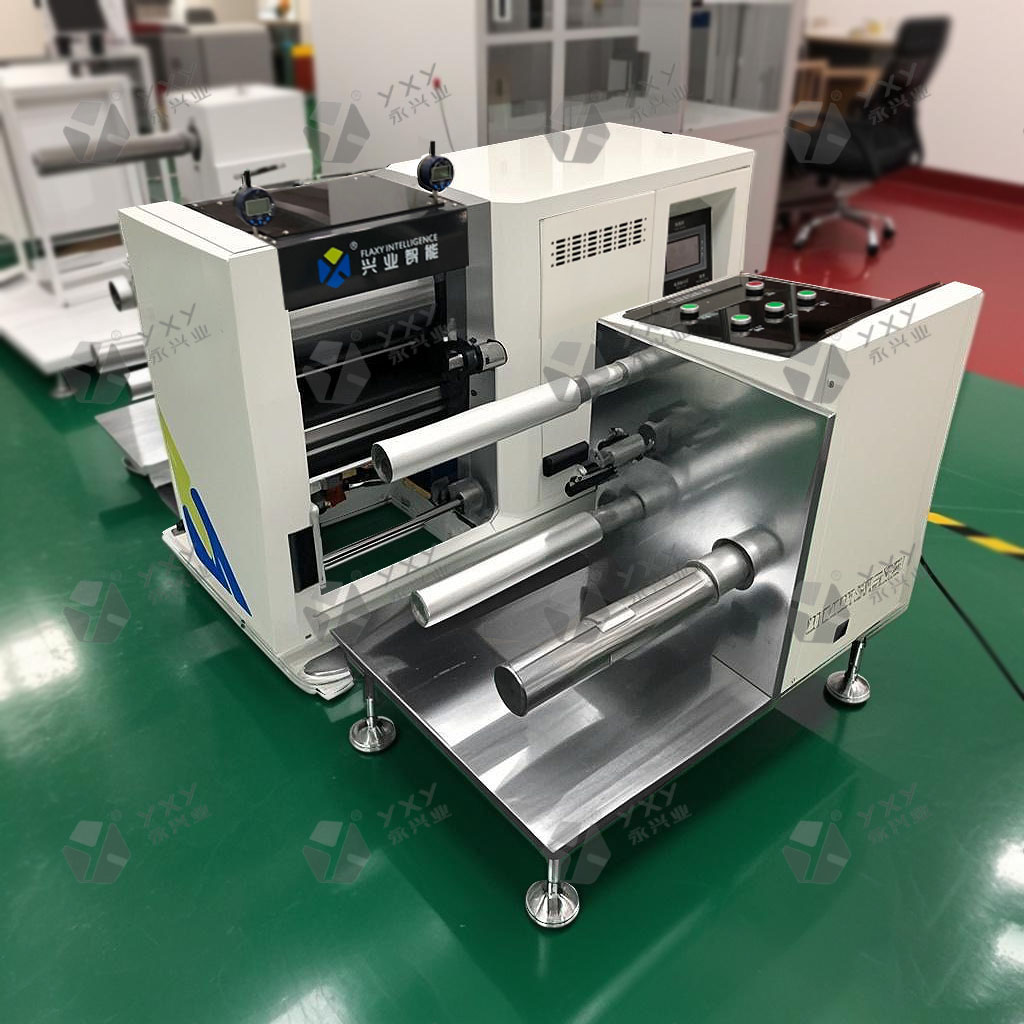

电动对辊机
型号:YXY-DG200
产品介绍:电动对辊机主要适用于实验室内电池材料,少量金银等贵金属材料、铜铝等有色材料的手动轧制。适合于清洁能源材料锂电池极板的减薄和增大密度。
     功能特点:
1、 采用齿轮传动,实现对辊压制,无极调速
2、 辊子通过螺旋压下系统自动压紧,实现恒间隙辊压
3、 两棍子上下水平布置,配置高精度轧机专用轴承并配套轴承游隙消除装置
4、 辊缝调整方式:下辊系固定,两侧螺旋压下,通过精密丝杠调整上辊系位置控制辊隙,上下辊系之间弹性支撑
规格参数:
型号 YXY- DG200
电压 AC220V   50HZ
功率 3KW
辊子规格 φ200x260mm
压片宽度 0~200mm
输出转速(变频调速) 7.5(r/min)
辊压极片精度 ≤±0.002mm
辊压线速度(变频调速) 4.7(m/min)
辊子装机径跳动 ≤±0.003mm
辊间最大压力 50-150t
系统工作压力 21MPa
辊缝调整精度 0.001mm(触摸屏显示)
产品尺寸 1400(L)×600(W)×1450(H)mm
重量 1000Kg
Electric roller machine
Model: YXY-DG200
Product introduction: The electric roller machine is mainly suitable for manual rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum. It is suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials.
      Features:
1. Adopting gear transmission to realize roller pressing and stepless speed regulation
2. The roller is automatically compressed by the screw-down system to achieve constant-gap rolling
3. The two sticks are arranged horizontally up and down, equipped with high-precision rolling mill special bearings and supporting bearing clearance elimination device
4. Roll gap adjustment method: the lower roller system is fixed, the two sides are screwed down, the upper roller system is adjusted by the precision screw to control the roller gap, and the upper and lower roller systems are elastically supported
Specifications:
model YXY- DG200
Voltage AC220V   50HZ
power 3KW
Roll specifications φ200x260mm
Tablet width 0~200mm
Output speed (frequency conversion speed regulation) 7.5(r/min)
Rolling pole piece precision ≤±0.002mm
Rolling line speed (frequency conversion speed regulation) 4.7(m/min)
Roller installed diameter runout ≤±0.003mm
Maximum pressure between rollers 50-150t
System working pressure 21MPa
Roll gap adjustment accuracy 0.001mm(Touch screen display)
Product Size 1400(L)×600(W)×1450(H)mm
weight 1000Kg
