实验型自动涂布机

发布时间:2021-10-19 17:49人气:
  • 实验型自动涂布机

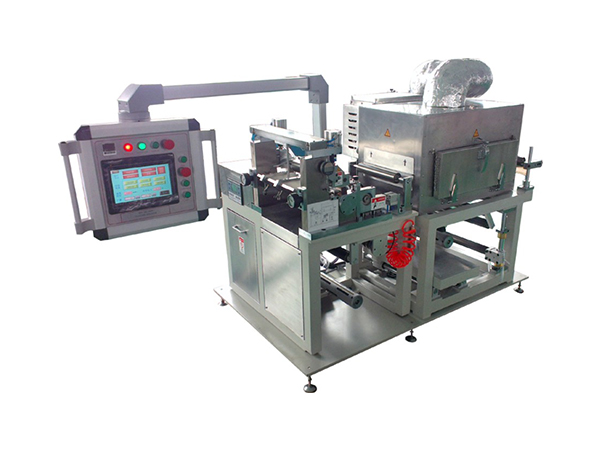

实验型自动涂布机
型号:YXY-SC300
产品介绍:实验型自动涂布机应用于箔材表面涂布,采用三辊转移式连续涂布、间歇式涂布方式,涂布方式可自由转换,涂布精度高。广泛应用于锂电池、超级电容器、石墨烯薄膜、陶瓷薄膜、光学薄膜以及各种功能薄膜行业。
     功能特点:
1、 采用三辊转移式涂布,具有很宽的涂布窗口
2、 带搅拌料槽,可自由切换实现连续和间歇涂布
3、 热风式烘箱,对流式加热,干燥效果好
4、 PLC控制,收卷配置纠偏装置
5、 可选配溶剂回收处理装置
规格参数:
型号 YXY-SC300
供电电源 AC220V     50Hz
功率 6KW
空气源 0.5-0.8MPa
涂布类型 三辊转移式连续涂布/间歇式涂布
最大涂布宽度 250mm
最小涂布宽度 30mm
涂布辊宽 300mm
机械速度 1m/min
涂布速度 0.1~0.6m/min
浆料搅拌 搅拌棒 316不锈钢
单面干厚度误差 ± 2μm(边缘误差±5μm)
收卷定位精度 ± 0.5mm
温度 Max.150±2℃
张力控制 ≤50N
千分表 数显千分表
控制面板 可移动式的
收放卷直径 Max.250mm
收放卷重量 Max.40kg
烘箱尺寸 800(L)*500(W)*500(H)mm
产品尺寸 1700(L)×950(W)×1000(H)mm
重量 900Kg
Experimental automatic coating machine
Model: YXY-SC300
Product introduction: The experimental automatic coating machine is applied to the surface coating of foils. It adopts three-roll transfer continuous coating and intermittent coating methods. The coating method can be freely switched and the coating precision is high. It is widely used in lithium batteries, supercapacitors, graphene films, ceramic films, optical films and various functional film industries.
      Features:
1. It adopts three-roll transfer coating and has a wide coating window
2. With stirring tank, it can be switched freely to realize continuous and intermittent coating
3. Hot-air oven, convection heating, good drying effect
4. PLC control, rewinding with correction device
5. Optional solvent recovery processing device
Specifications:
model YXY-SC300
Power supply AC220V     50Hz
power 6KW
Air source 0.5-0.8MPa
Coating type Three-roll transfer continuous coating/intermittent coating
Maximum coating width 250mm
Minimum coating width 30mm
Coating roll width 300mm
Mechanical speed 1m/min
Coating speed 0.1~0.6m/min
Slurry mixing Stirring rod 316 stainless steel
Single-sided dry thickness error ± 2μm (Edge error ±5μm)
Rewinding positioning accuracy ± 0.5mm
temperature Max.150±2℃
Tension control ≤50N
Dial indicator Digital dial indicator
control panel Removable
Rewinding and unwinding diameter Max.250mm
Rewinding and unwinding weight Max.40kg
Oven size 800(L)*500(W)*500(H)mm
Product Size 1700(L)×950(W)×1000(H)mm
weight 900Kg
